Klemmeventiler og slangeventiler
Når en klemmeventil er helt åben, giver den en fri og ubegrænset strømningsvej, hvilket reducerer risikoen for tilstopning, materialeophobning og overdreven slitage. Ventilen betjenes ved mekanisk eller pneumatisk at komprimere gummimanchetten, hvilket gør det muligt at bruge den til både afspærrings- og strømningsreguleringsapplikationer.
Mange industrielle klemmeventiler er designet med en udskiftelig gummimuffe, der gør det muligt at udskifte den primære slidkomponent uden at udskifte hele ventilen. Dette giver en holdbar og omkostningseffektiv ventilløsning til krævende applikationer i industrier som minedrift, mineralforarbejdning, vandbehandling, kemikalier og andre slamhåndteringsprocesser.

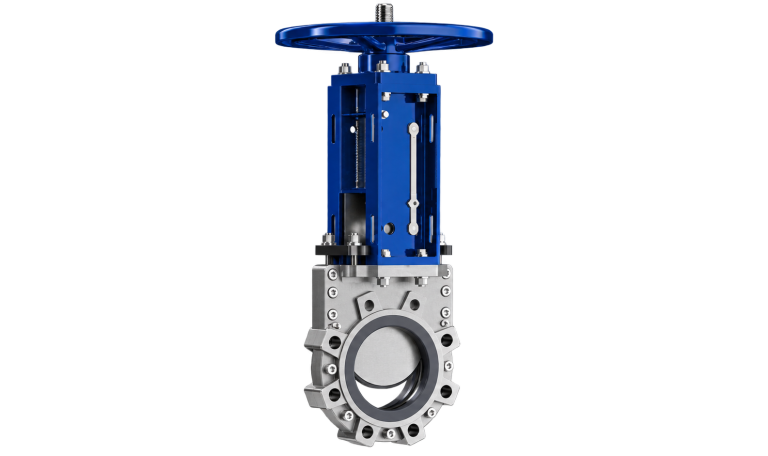

Lined Knife Gate Valve
Our Lined Knife Gate Valves are designed for reliable on/off isolation in abrasive and corrosive process applications. The valve body and chest are fully lined with moulded rubber, protecting the metal components from direct contact with the process media.
The flush-bottom, full round port design eliminates cavities where solids can collect and provides zero discharge to atmosphere, making the valve well suited for slurry and other demanding media.
Wafer Knife Gate Valve
Our Wafer Knife Gate Valves provide a compact solution for slurry and abrasive media applications where installation space is limited. The full port design allows the gate to be fully isolated by the sleeves in the open position.
When closed, the gate moves between the sleeves to provide a bi-directional bubble-tight seal with zero downstream leakage. Solids are purged through the bottom of the valve housing, helping prevent clogging and gate jamming.
Flanged Knife Gate Valve
Heavy-duty rubber sleeves protect the valve from wear, while the gate passes through the sleeves during closing. Solids are purged through the bottom of the valve housing, helping prevent clogging and gate jamming.

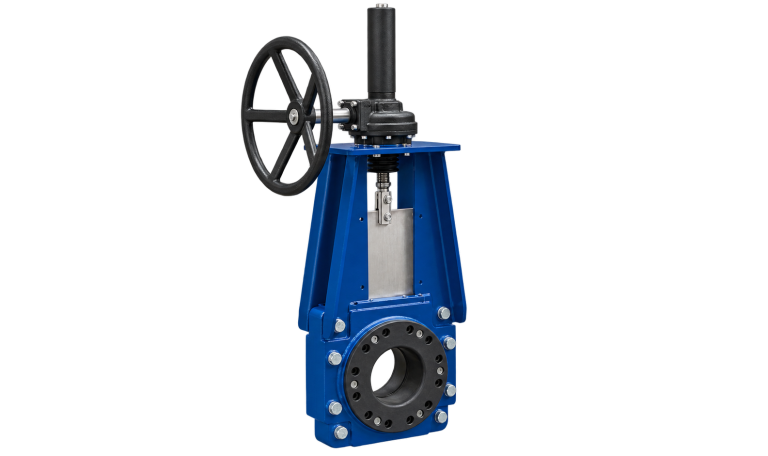

High Pressure Slurry Knife Gate Valve
Heavy-duty rubber sleeves provide sealing and wear resistance, while the gate passes through the sleeves during closing. Solids are purged through the bottom of the valve housing, helping prevent clogging and gate jamming.
Severe Service Lined Knife Gate Valve
The double-layer sealing system uses an inner seal to isolate the process flow and an outer seal to prevent leakage to atmosphere, providing extended service life and reliable containment in severe-duty applications.
Urethane Lined Knife Gate Valve
The flush-bottom, full round port design eliminates pockets where solids can collect and provides zero discharge to atmosphere.
Severe Service Wafer Sleeve Knife Gate Valve
The flush-bottom, full round port design eliminates pockets where solids can collect and provides zero discharge to atmosphere, improving reliability and service life.
Lined Moulded Knife Gate Valve
The flush-bottom, full round port design eliminates pockets where solids can collect and provides zero discharge to atmosphere.
