Beskrivning

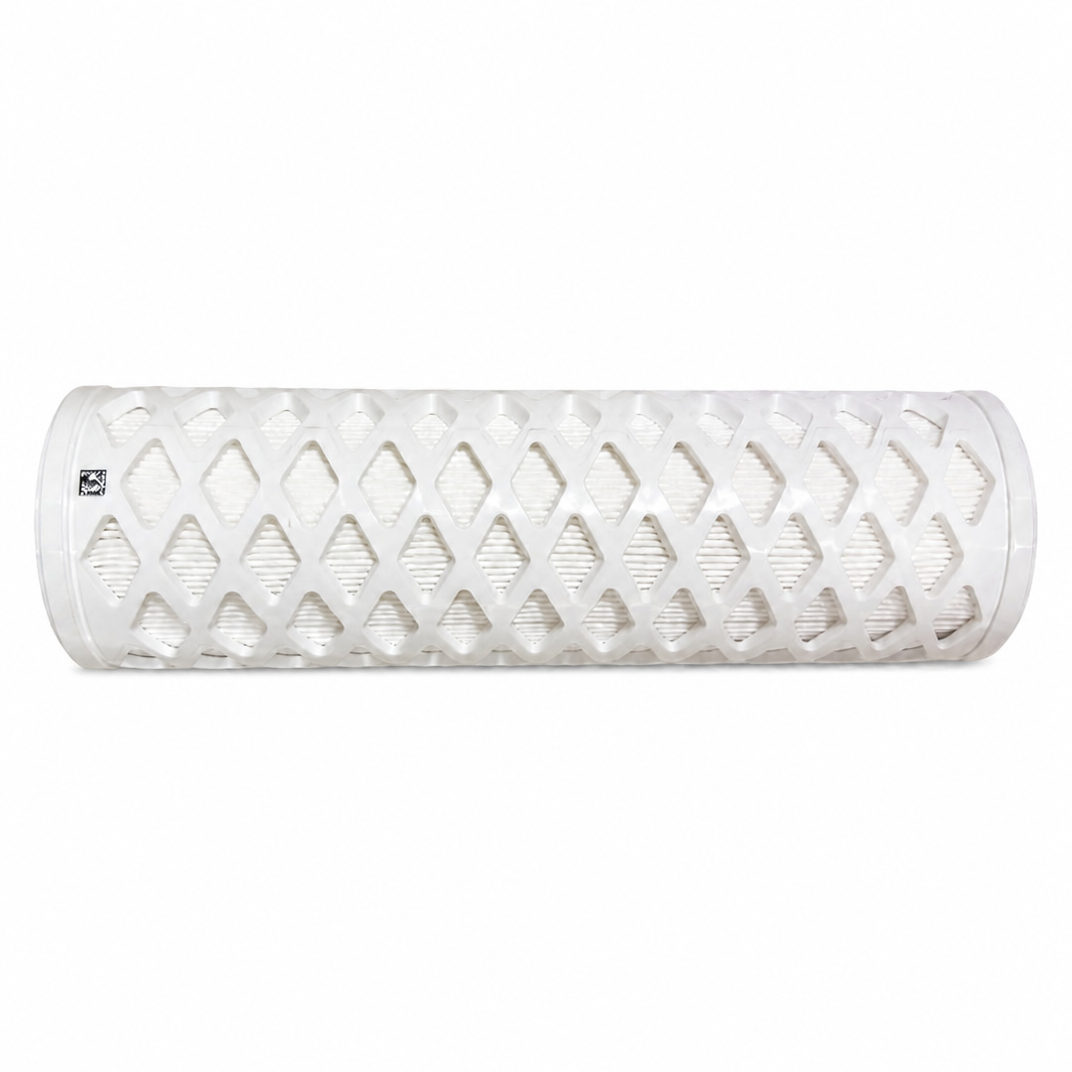

Donaldson LifeTec™ PP N depth filter element designed for liquid filtration in food and beverage, pharmaceutical, chemical and general process applications.
The 1C230411-05 is manufactured entirely from polypropylene and uses an asymmetrical microfiber filter matrix with a graded pore structure. This design provides effective particle retention, high flow capacity and high dirt-holding capacity while helping extend the service life of the filter element.
The element has a nominal filtration rating of 5 µm and a double-open-end configuration with flat EPDM gaskets. Its all-polypropylene construction provides broad chemical compatibility and low extractable levels, making it suitable for a wide range of process liquids.
The materials are suitable for food-contact applications in accordance with FDA CFR Title 21 and EC Regulation 1935/2004.
Drag
- Original Donaldson LifeTec PP N filter element
- Nominal filtration rating of 5 µm
- Asymmetrical polypropylene microfiber matrix
- Graded pore structure for effective particle retention
- High flow capacity
- High dirt-holding capacity
- Designed for extended service life
- Durable all-polypropylene construction
- Broad chemical compatibility
- Low extractable levels
- Double-open-end configuration
- Flat EPDM gaskets
- Suitable for food-contact applications
- Compliant with FDA CFR Title 21
- Materials compliant with EC Regulation 1935/2004
Typical applications
- Bottled water, beer, wine, soft drinks, spirits and syrups
- Food and beverage production
- Pharmaceutical and cosmetic process liquids
- Oils and lubricants
- Paints, dyes and printing inks
- Acids, alcohols, bases, esters and ketones
- General process-liquid clarification
- Particle reduction and fluid conditioning
Detaljer
- Manufacturer: Donaldson
- Product series: LifeTec PP N
- Product ID: 1C230411-05
- Element size: 10/3
- Filtration rating: 5 µm nominal
- Filter-media material: Polypropylene
- End-cap material: Polypropylene
- Inner-core material: Polypropylene
- Outer-core material: Polypropylene
- Gasket material: EPDM
- Connection: Double open end with flat gaskets
- Diameter: 70 mm
- Length: 250 mm
- Maximum operating temperature: 82 °C
- Food-contact materials: FDA CFR Title 21 and EC 1935/2004
Compatibility with the process liquid, operating temperature, differential pressure and existing filter housing should be confirmed before ordering.
