Lýsing

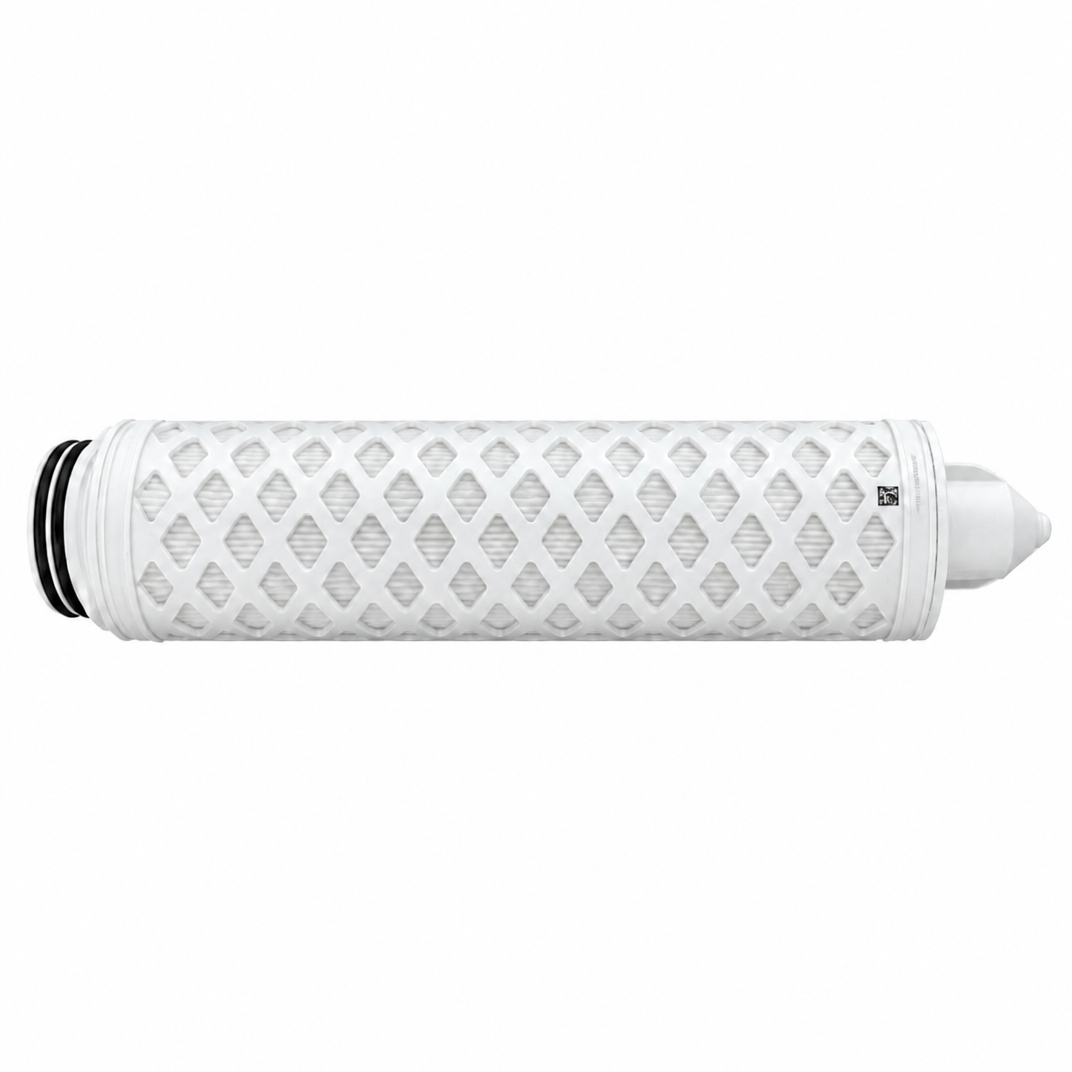

Donaldson LifeTec™ PP N depth filter element designed for coarse liquid filtration and pre-filtration in food and beverage, pharmaceutical, chemical and general process applications.
The 1C230281-99 is manufactured entirely from polypropylene and uses an asymmetrical microfiber filter matrix with a graded pore structure. This design supports effective particle retention, high flow capacity and high dirt-holding capacity while helping extend the service life of the element.
The filter has a nominal filtration rating of 99 µm and is equipped with a Code 7 connection and EPDM sealing material. Its all-polypropylene construction provides broad chemical compatibility and low extractable levels, making it suitable for coarse filtration and pre-filtration of a wide range of process liquids.
The materials are suitable for food-contact applications in accordance with FDA CFR Title 21 and EC Regulation 1935/2004.
Eiginleikar
- Original Donaldson LifeTec PP N filter element
- Nominal filtration rating of 99 µm
- Suitable for coarse filtration and pre-filtration
- Asymmetrical polypropylene microfiber matrix
- Graded pore structure for effective particle retention
- High flow capacity
- High dirt-holding capacity
- Designed for extended service life
- 100% polypropylene construction
- Broad chemical compatibility
- Low extractable levels
- Code 7 connection
- EPDM O-ring
- Suitable for food-contact applications
- Compliant with FDA CFR Title 21
- Materials compliant with EC Regulation 1935/2004
Typical applications
- Coarse pre-filtration in food and beverage production
- Bottled water, beer, wine, soft drinks, spirits and syrups
- Pharmaceutical and cosmetic process liquids
- Oils and lubricants
- Paints, dyes and printing inks
- Acids, alcohols, bases, esters and ketones
- General process-liquid clarification
- Removal of larger particles before finer filtration stages
Nánari upplýsingar
- Manufacturer: Donaldson
- Product series: LifeTec PP N
- Product ID: 1C230281-99
- Element size: 10/3
- Filtration rating: 99 µm nominal
- Filter-media material: Polypropylene
- End-cap material: Polypropylene
- Inner-core material: Polypropylene
- Outer-core material: Polypropylene
- O-ring material: EPDM
- Connection: Code 7
- Diameter: 70 mm
- Length: 315 mm
- Maximum operating temperature: 82 °C
- Food-contact materials: FDA CFR Title 21 and EC 1935/2004
Compatibility with the process liquid, operating temperature, differential pressure and existing filter housing should be confirmed before ordering.
